High Speed Precision Repairs On All GMN Spindle Models

Our GMN spindle repair technicians are privileged to have state-of-the-art in-house resources that give them the edge in high precision spindle repair work. We have full access to OEM parts as well as complete manufacturing capabilities allowing us to repair your machine tool spindle properly the very first time. GTI is the spindle company for your GMN spindle rebuilds.

GMN Spindle Re-manufacturing Services

Analysis

Our technicians thoroughly inspect the spindle to identify the problem correctly before moving ahead with any spindle repair work. All spindles are subjected to the following 5 point assessment:

Incoming Vibration Analysis

  • Incoming vibration analysis is performed in order to determine: bearing condition, level of unbalance, non-repetitive runout.

Assembled Spindle Inspection

  • Pilot ID or taper runout on tool end of shaft to determine possible spindle crash or improper tooling.
  • Rear taper runout inspection to determine possible over tightening of belts or improper tooling.
  • Preload test to determine bearing wear or spindle crash.

Disassembled Spindle Inspection

  • Pilot ID or taper inspection to determine spindle crash, improper tooling or overheating. Bearing journal inspection to determine improper bearing fits or use of spindle after initial failure.
  • Overall shaft condition to determine crash, overheating, lack of coolant or overloading.

Bearing Condition

  • An inspection of bearings is performed under lab conditions by factory trained bearing specialists to determine lack of lubrication, over speeding, spindle crash, overloading, loss of preload, contamination (coolant or other material) or overheating due to electrical problems. In addition, we have the access to all Bearing OEM’s facilitation and personnel.

Engineering Recommendations

  • We recommend spindle design changes or enhancements to improve spindle longevity and/or performance. For example, if a spindle has failed due to contamination, a design change such as new labyrinth nuts, air purging, hybrid bearings or improved sealing design will be recommended and implemented.

What GTI Provides

Removal

  • The spindle needs to be removed from the grinding machine. Removal can be done either by the customer themselves or by GTI technicians who can be sent to the client’s site for removal of the spindle.

Repair

  • Post planning of GMN spindle repair corrective actions, rebuilding as well as preventative maintenance work advice is given which needs to be taken care of before installing the spindle back into the machine.

Testing

  • The spindles are tested to check if all the machine interface parts such as encoders, proximity switches etc. are functioning properly and all spindles have to pass the vibration analysis and review of an autonomous GTI QC manager.

Reinstallation

  • GMN machine tool spindle post repair are reinstalled and checked for performance and reliability; which can be executed upon customer request by a GTI technician. Detailed documentation of the repair work is provided to all GTI customers.
Our GMN re-manufacturing facilities have widely trained and skilled engineering and technical teams who are committed to discover new ways of constantly refining our spindle operations. Be it a GMN Production Grinding Machine, Profile and Surface Grinding Machine or Special Purpose Grinding Machine; let our skilled and experienced team help you in your spindle repairs. Our aim is to offer reliable services to increase your company efficiency and run your production floor smoothly.
Our GMN spindle repair and spindle rebuild comes with a one-year warranty. This warranty starts from the day of installation on the machine, not the day of shipment like many of our competitors. Call us to arrange your GMN spindle repair and to get your spindle back into production. Think you need a GMN spindle replacement or repair? Call to discuss your options. Toll free: 888-473-9675 GTI Spindle Technology

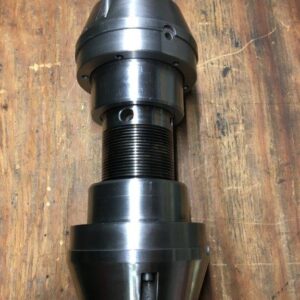

Showing the single result
